TIG Torch

Mã sản phẩm: TIG Torch

Danh mục: Tay Hàn và Cắt
Nơi xuất xứ: Nhật Bản
Nhà sản xuất: OTC

Giá: đ

Số lượng:

Tổng tiền: đ

Hotline hỗ trợ

0913703747

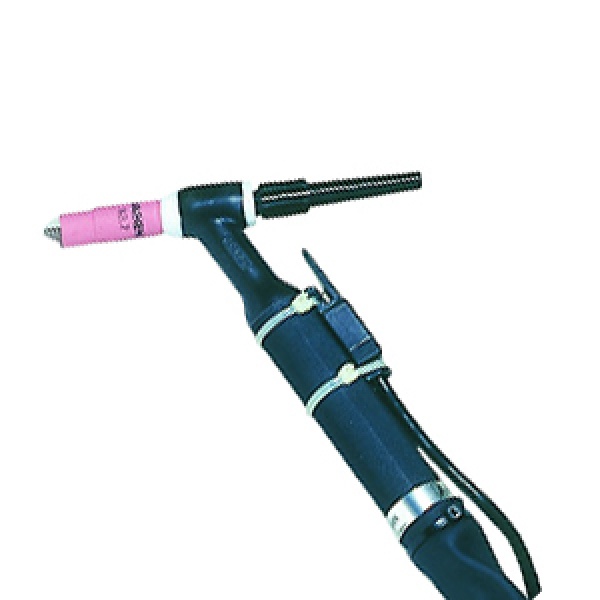

TIG TORCH
Dòng TIG TORCH
Mỏ hàn TIG
Đơn giản và tuyệt vời
Kết cấu bền ...
Khả năng hoạt động tuyệt vời vì nó nhẹ
Đặc tính
Mỏ hàn tiêu chuẩn TIG
Cấu trúc đơn giản và độ bền tuyệt vời · · · Nhẹ và khả năng hoạt động vượt trội

AW-9 type / 120 A air-cooled angle type	AW-17 type / 150 A air-cooled angle type

AWP-9 type / 120 A air-cooled pencil type	AWP-17 type / 150 A air-cooled pencil type

AW-2041, 2081 type /200A Air cooled angle type	AW-26 type / 200A Air cooling type

AW-18 type / 300A water-cooled angle type	AW - 20 type / 200 A water - cooled angle type

AWF-1541, 1581 type / 150A air-cooled flexible type	AW-12 type / 500 A water-cooled angle type

	AWF-2041, 2081 type / 200 A air-cooled flexible type

Specification

■Air Cooled

Model	Cable length	Welding current (A)		Usage rate	Applicable electrode diameter (mmφ)
Model	Cable length	Direct current	Alternating current	Usage rate	Applicable electrode diameter (mmφ)
AWF-17 (Flexible type）	4m or 8m	150	130	50%	(0.5)、(1.0)、1.6、(2.0)、2.4
AWF-26 (Flexible type）		200	160	50%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AW-9		120	95	50%	(0.5)、1.0、1.6
AWP-9 (Pencil type)		120	95	50%	(0.5)、1.0、1.6
AW-17		150	130	50%	(0.5)、(1.0)、1.6、(2.0)、(2.4)
AWP-17 (Pencil type)		150	130	50%	(0.5)、(1.0)、1.6、(2.0)、2.4
AWD-17 (D series only)		150	130	50%	(0.5)、(1.0)、1.6、(2.0)、(2.4)
AW-26		200	160	50%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AWD-26 (D series only)		200	160	50%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AW-2041	4m	200	160	35%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AW-2081	8m	200	160	35%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AWX-2081 (TIG MINI designated)	8m	200	160	35%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(4.0)
AWF-1541 (Flexible type）	4m	150	130	50%	(0.5)、(1.0)、1.6、(2.0)、(2.4)
AWF-1581 (Flexible type)	8m	150	130	50%	(0.5)、(1.0)、1.6、(2.0)、(2.4)
AWF-2041 (Flexible type)	4m	200	160	35%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)
AWF-2081 (Flexible type)	8m	200	160	35%	(0.5)、(1.0)、(1.6)、(2.0)、2.4、(3.0)、(3.2)、(4.0)

■ Water cooling

Model	Cable length	Welding current (A)		Usage rate	Applicable electrode diameter (mmφ)
Model	Cable length	Direct current	Alternating current	Usage rate	Applicable electrode diameter (mmφ)
AW-20	4mまたは8m	200	160	100%	(0.5)、(1.0)、1.6、(2.0)、2.4、(3.0)、(3.2)
AW-25 (Pencil type [Flexible type])		200	160	100%	(0.5)、(1.0)、1.6、(2.0)、2.4、(3.0)、(3.2)
AW-18		300	260	100%	(0.5)、(1.0)、(1.6)、(2.0)、(2.4)、(3.0)、3.2、(4.0)
AWD-18 (D series only)		300	260	100%	(0.5)、(1.0)、(1.6)、(2.0)、(2.4)、(3.0)、3.2、(4.0)
AW-12		500	400	100%	(1.0)、(1.6)、(2.4)、3.2、4.0、(4.8)、(6.4)
AWG-8 (Pistol type)		250	200	100%	(1.6)、(2.0)、(2.4)、(3.0)、3.2、(4.0)
AW-33		500	400	100%	(1.0)、(1.6)、2.4、3.2、(4.0)、(6.4)

Note 1. When using the electrodes in (), sold separately is required.
Note 2. A lever type torch switch is included as standard on the torch. (Excluding AW - 33, AWG - 8)
