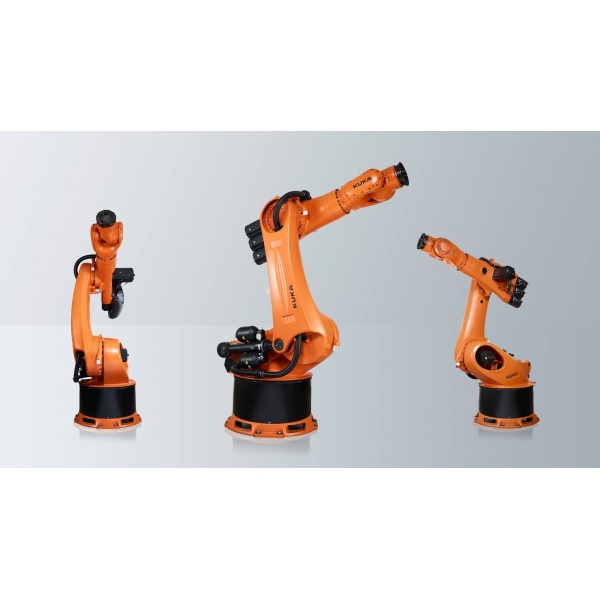

The exceptional product quality that the KR 500 FORTEC delivers in milling and other applications is based on two fundamental features that inspired the robot’s name: strength and proven technology. Reaches of up to 3,326 millimeters enable large workpieces to be processed, even in confined cells. Thanks to its streamlined design with minimized interference contours, the robot provides you with an unusually large workspace and the maximum possible payload distances.
| KR 340 R3330 | KR 340 R3330 F | KR 420 R3080 | KR 420 R3080 F | KR 480 R3330 MT | KR 480 R3330 MT-F | |
|
Payload
|
340 kg
|
340 kg
|
420 kg
|
420 kg
|
480 kg
|
480 kg
|
|
Maximum reach
|
3326 mm
|
3326 mm
|
3076 mm
|
3076 mm
|
3326 mm
|
3326 mm
|
|
Construction type
|
Standard
|
Standard
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Version environment
|
Standard
|
Foundry
|
Standard
|
Foundry
|
Standard
|
Foundry
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
Floor
|
Floor
|
Floor
|
|
Protection class
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
| IP 67 | IP 67 | |||||
|
Data sheet
|
| KR 500 R2830 C | KR 500 R2830 | KR 500 R2830 MT | KR 500 R2830 C-F | KR 500 R2830 F | KR 500 R2830 MT-F | |
|
Payload
|
500 kg
|
500 kg
|
500 kg
|
500 kg
|
500 kg
|
500 kg
|
|
Maximum reach
|
2485 mm
|
2826 mm
|
2826 mm
|
2485 mm
|
2826 mm
|
2826 mm
|
|
Construction type
|
Standard
|
Standard
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Version environment
|
Standard
|
Standard
|
Standard
|
Foundry
|
Foundry
|
Foundry
|
|
Mounting positions
|
Ceiling
|
Floor
|
Floor
|
Ceiling
|
Floor
|
Floor
|
|
Protection class
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
| IP 67 | IP 67 | IP 67 | ||||
|
Data sheet
|
