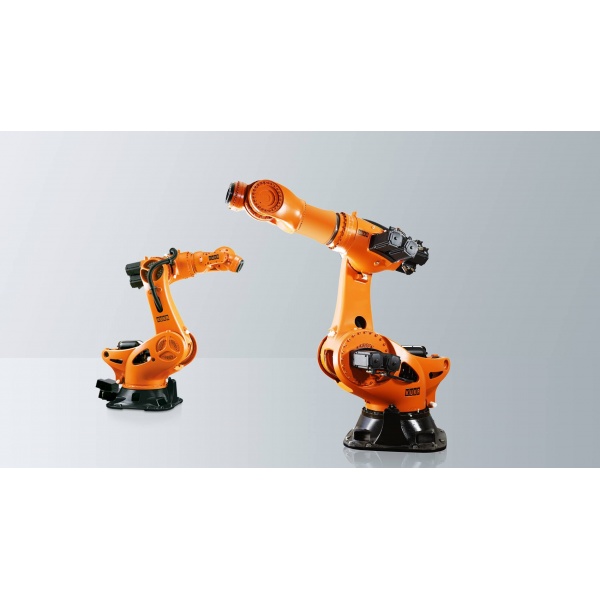

The KR 1000 titan is the first six-axis robot with an open kinematic system and an unparalleled payload capacity. It masters the handling of heavy loads over distances of up to 6.5 meters precisely and quickly. Engine blocks, stones, glass, steel beams, components for ships and aircraft, marble blocks, precast concrete parts – all of these heavy loads are no problem for the KR 1000 titan. For special areas of application, we offer the Foundry variant with the best reach/payload ratio or the version as a palletizing robot for heavy loads of up to 1.3 tonnes.
| KR 1000 L750 titan | KR 1000 L750 titan F | KR 1000 L950 titan PA | KR 1000 titan | KR 1000 titan F | KR 1000 1300 titan PA | |
|
Payload
|
750 kg
|
750 kg
|
950 kg
|
1000 kg
|
1000 kg
|
1300 kg
|
|
Maximum reach
|
3601 mm
|
3601 mm
|
3601 mm
|
3202 mm
|
3202 mm
|
3202 mm
|
|
Construction type
|
Standard
|
Standard
|
Palletizing robot
|
Standard
|
Standard
|
Palletizing robot
|
|
Version environment
|
Standard
|
Standard
|
Standard
|
Standard
|
Foundry
|
Standard
|
|
Mounting positions
|
Floor
|
Floor
|
Floor
|
Floor
|
Floor
|
Floor
|
|
Protection class
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
IP 65
|
| IP 67 | IP 67 | |||||
|
Data sheet
|
| KR 1000 1300 titan PA-F | |
|
Payload
|
1300 kg
|
|
Maximum reach
|
3202 mm
|
|
Construction type
|
Palletizing robot
|
|
Version environment
|
Foundry
|
|
Mounting positions
|
Floor
|
|
Protection class
|
IP 65
|
|
Data sheet
|
