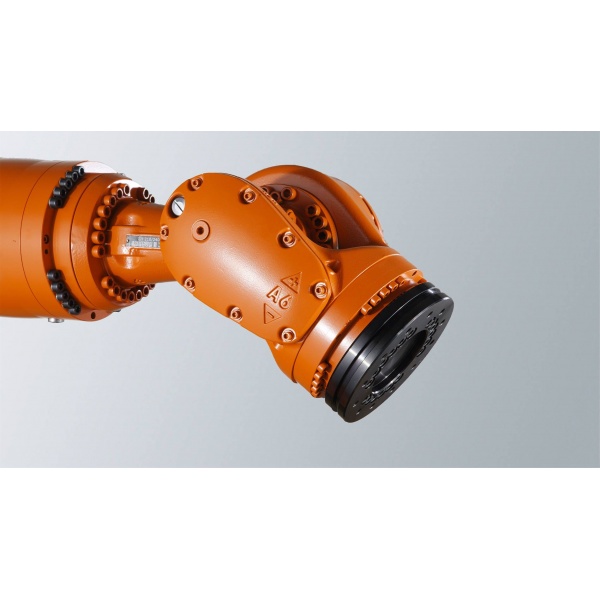

The KR QUANTEC press has been optimized for press shop integration. It can be used to implement a wide range of applications, for press linking across narrow or wide press gaps, transferring large and medium-sized blanks as well as loading and unloading press lines. Its faster axes enable high-speed press-to-press automaton, which is ideal for the automotive industry.
The KR QUANTEC press-to-press robots are available in floor and ceiling-mounted variants.
| KR 100 R3500 press | KR 100 R3500 press C | KR 120 R3500 press C | |
|
Payload
|
100 kg
|
100 kg
|
120 kg
|
|
Maximum reach
|
3501 mm
|
3501 mm
|
3455 mm
|
|
Construction type
|
Press-to-press robot
|
Press-to-press robot
|
Press-to-press robot
|
|
Version environment
|
Standard
|
Standard
|
Standard
|
|
Mounting positions
|
Floor
|
Ceiling
|
Ceiling
|
|
Protection class
|
IP 65
|
IP 65
|
IP 65
|
|
Data sheet
|
| KR 120 R3500 press | |
|
Payload
|
120 kg
|
|
Maximum reach
|
3501 mm
|
|
Construction type
|
Press-to-press robot
|
|
Version environment
|
Standard
|
|
Mounting positions
|
Floor
|
|
Protection class
|
IP 65
|
|
Data sheet
|
