Cost-effective, flexible robots for applications such as arc welding, adhesive bonding and application or laser cutting

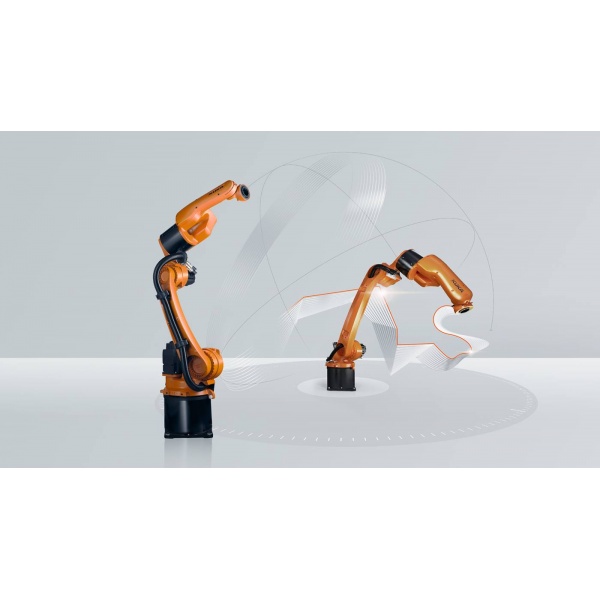

With their new controller structures, the industrial robots of the KR CYBERTECH ARC nano family have extremely high path accuracy and speed. The acceleration values and the new ergonomic design with minimized disruptive contours ensure continuous-path motion at the very highest level – even deep inside the workpieces. With very fine payload intervals of 6 and 8 kilograms, you will find the ideal robot model for your application.
| KR 6 R1820 arc HW | KR 6 R1820 arc HW | KR 6 R1840-2 arc HW | KR 8 R1420 arc HW | KR 8 R1440-2 arc HW | KR 8 R1620 arc HW |
|
Payload
|
6 kg
|
6 kg
|
8 kg
|
8 kg
|
8 kg
|
|
Maximum reach
|
1823.5 mm
|
1840 mm
|
1420 mm
|
1440 mm
|
1621 mm
|
|
Construction type
|
Hollow Wrist
|
Hollow Wrist
|
Hollow Wrist
|
Hollow Wrist
|
Hollow Wrist
|
|
Version environment
|
Standard
|
Standard
|
Standard
|
Standard
|
Standard
|
|
Mounting positions
|
Angle
|
Ceiling
|
Angle
|
Ceiling
|
Angle
|
| Ceiling | Floor | Ceiling | Floor | Ceiling | |
| Floor | Floor | Floor | |||
| Wall | Wall | Wall | |||
|
Protection class
|
IP 54
|
IP 54
|
IP 54
|
IP 54
|
IP 54
|
|
Data sheet
|
| KR 8 R1640-2 arc HW | |
|
Payload
|
8 kg
|
|
Maximum reach
|
1640 mm
|
|
Construction type
|
Hollow Wrist
|
|
Version environment
|
Standard
|
|
Mounting positions
|
Ceiling
|
| Floor | |
|
Protection class
|
IP 54
|
|
Data sheet
|
